Client: Michael Corrin
Target Audience: educated audience
Medium/Software: Adobe Photoshop, Adobe Illustrator, Autodesk Maya, Zbrush
Description:
The process of vision begins when light enters the eye through the cornea, the transparent outer layer that helps focus incoming light. It then passes through the aqueous humor and enters the pupil, the opening in the center of the iris that regulates the amount of light entering the eye. After passing through the pupil, light travels through the lens, which adjusts its shape to further focus the light onto the retina at the back of the eye. The focused light forms an image on the retina, where photoreceptor cells (rods and cones) convert it into electrical signals. These signals are then transmitted via the optic nerve to the brain, where they are interpreted as visual images.

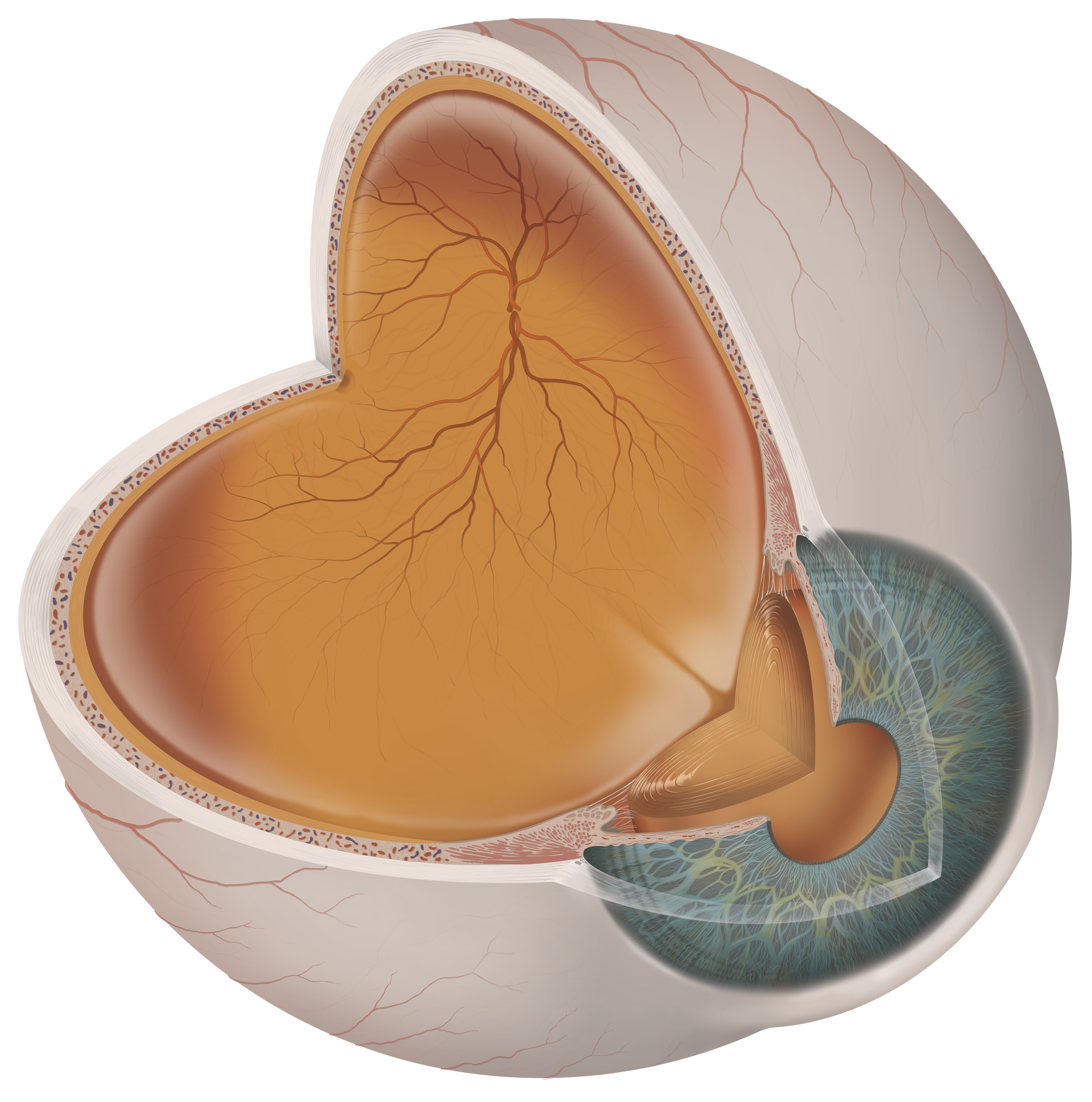

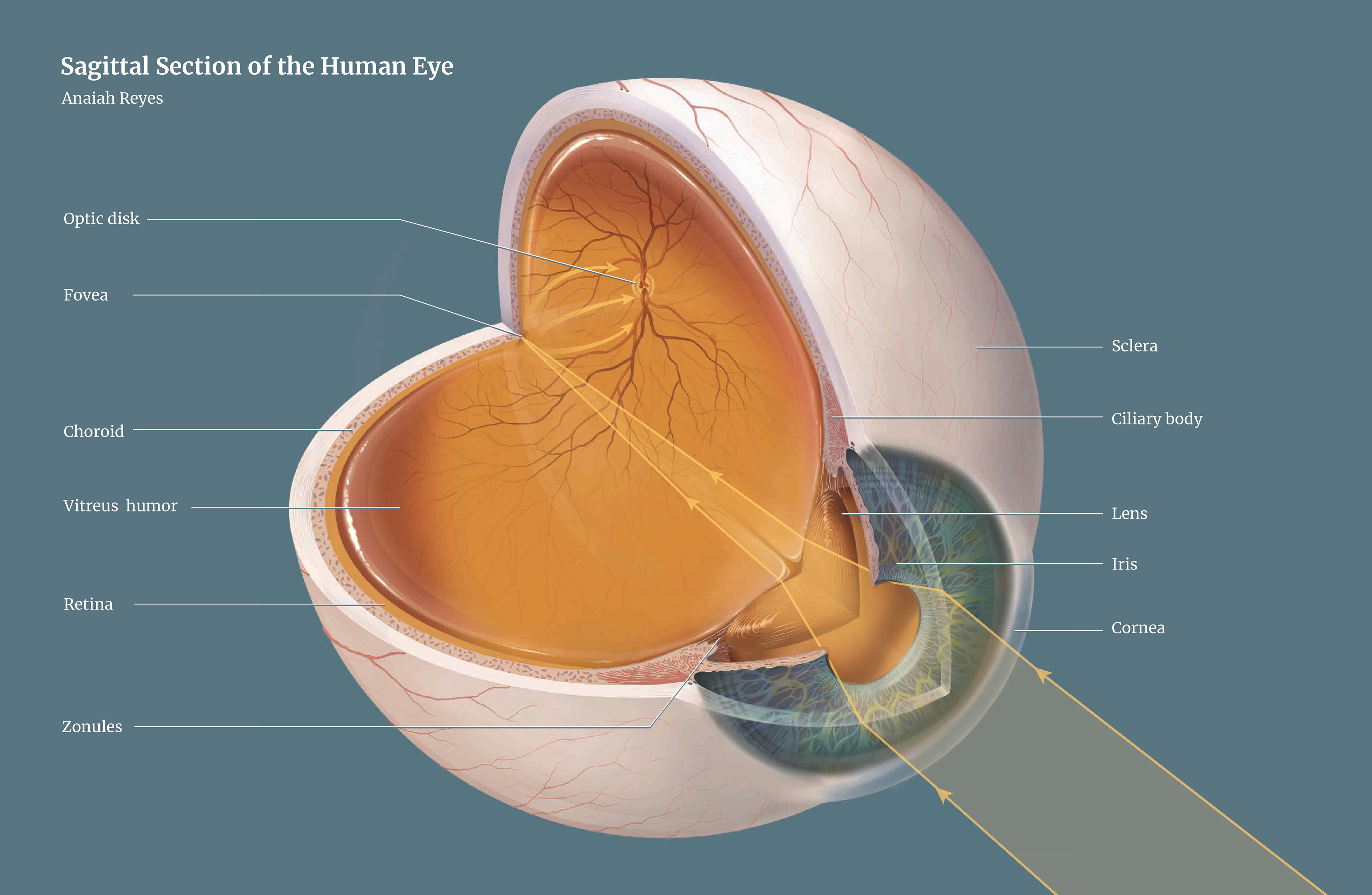

This graphic serves as an introduction to the structures of the eye, focused on portraying the path of light through each structure using an uncommon cross-sectional view of the eye.
Process work:

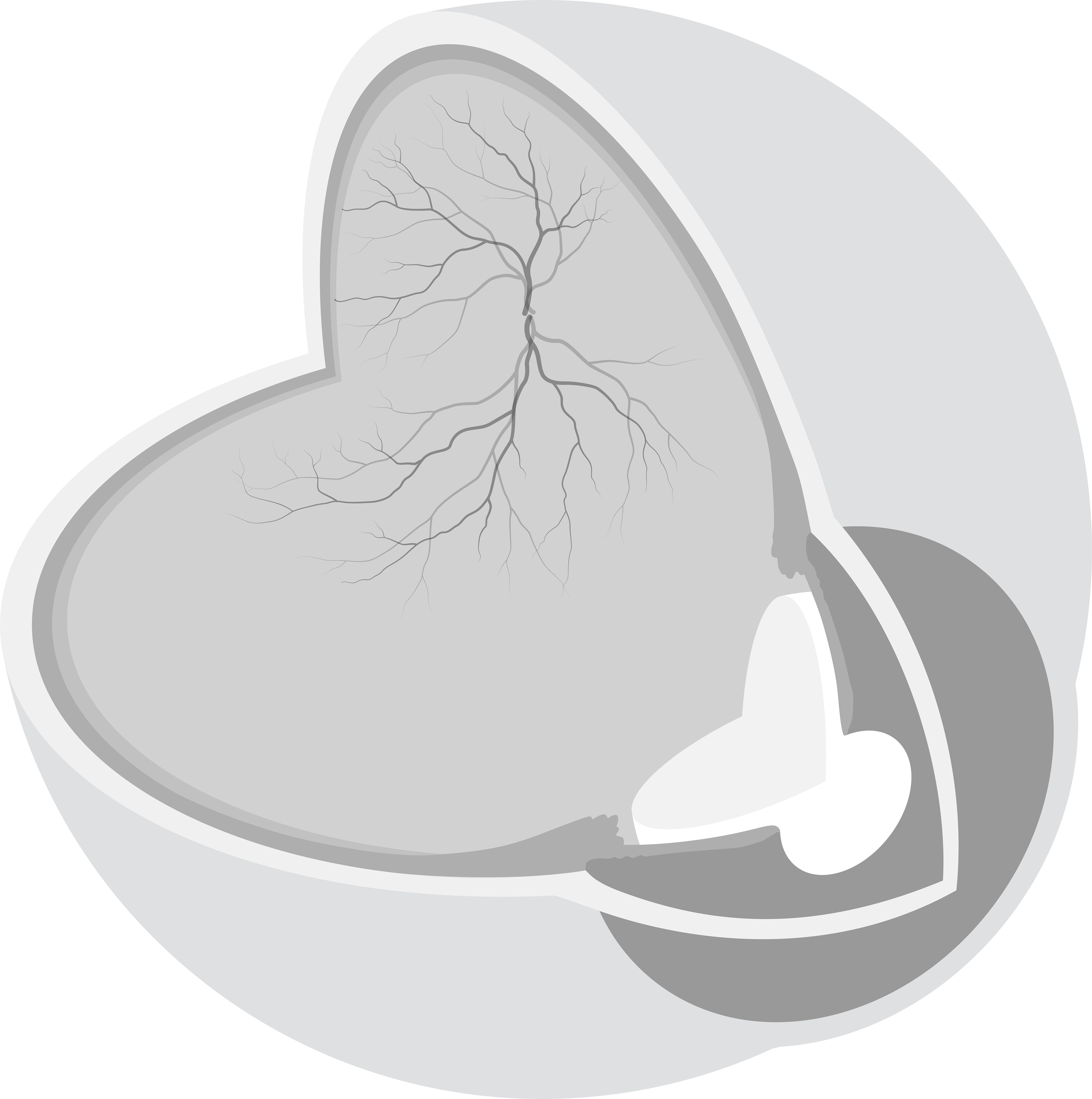

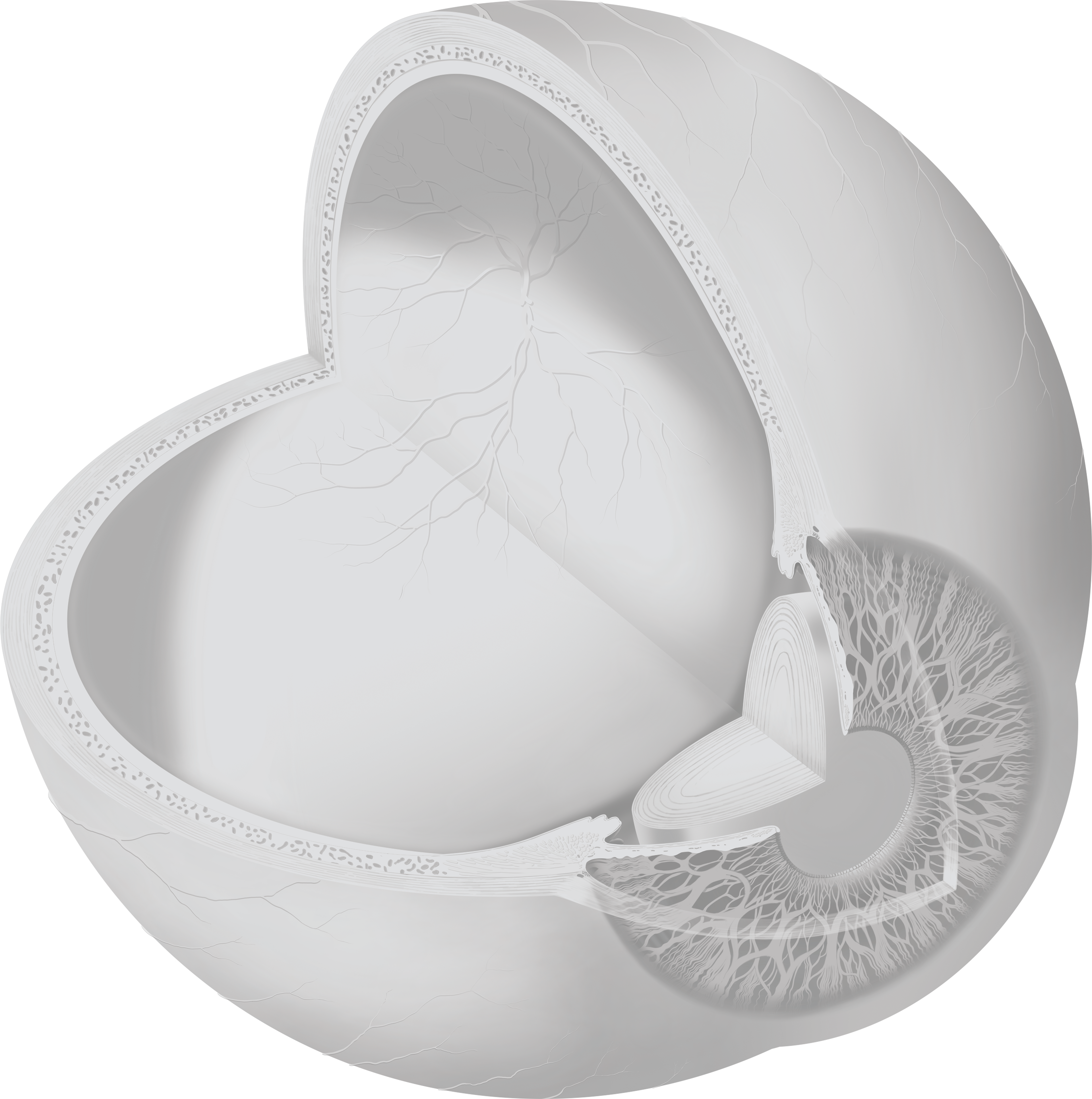

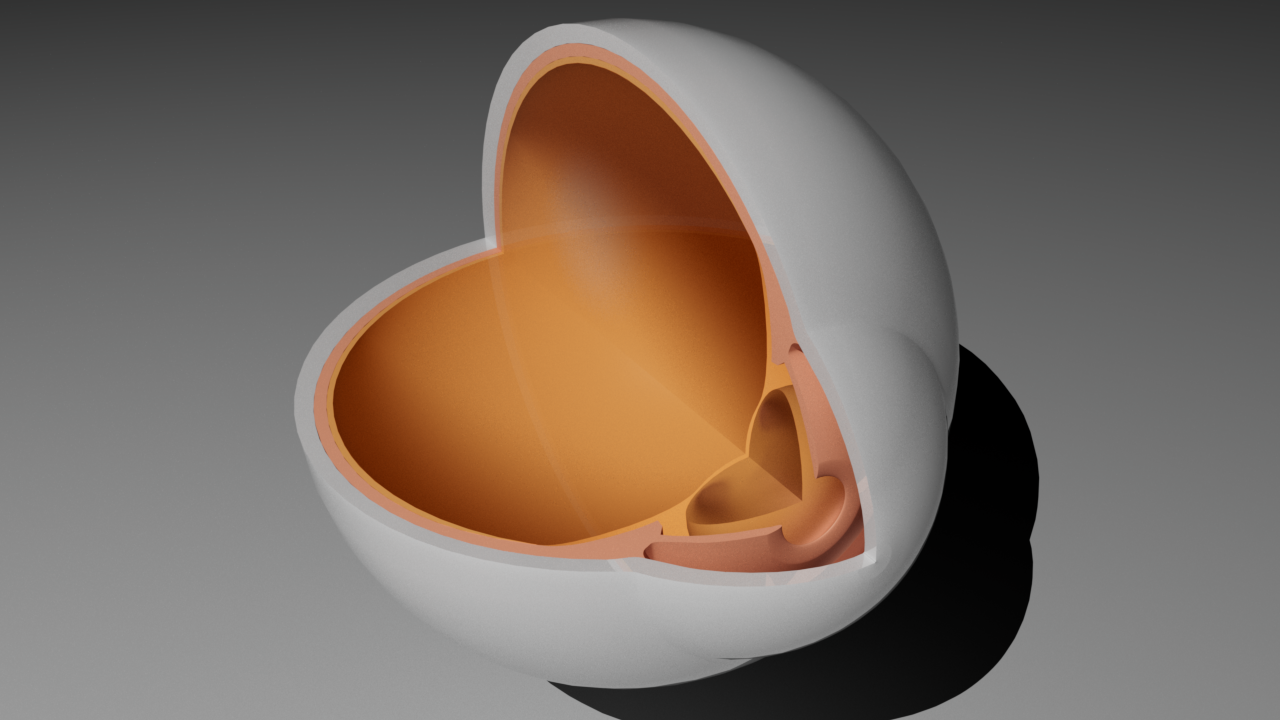

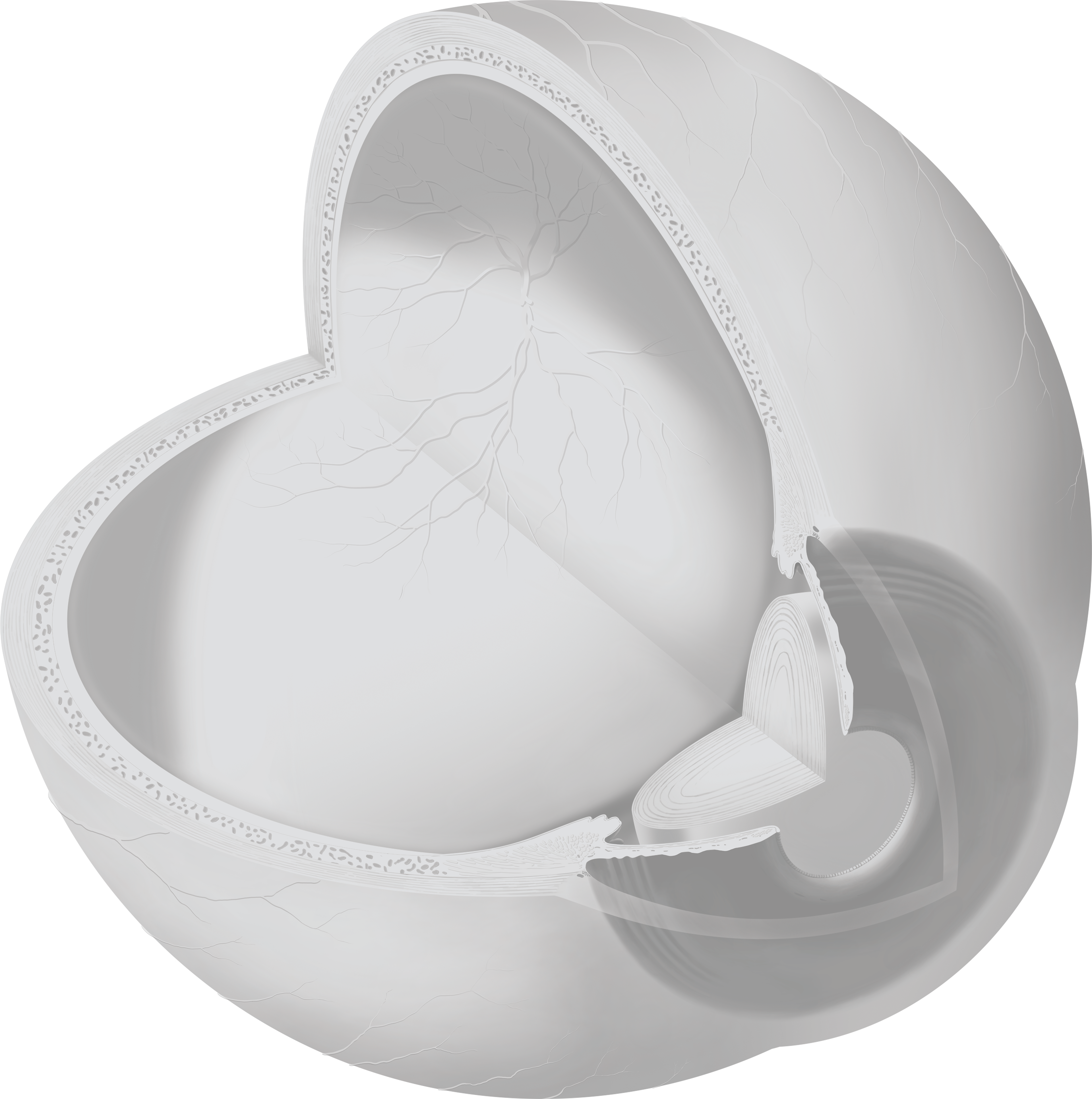

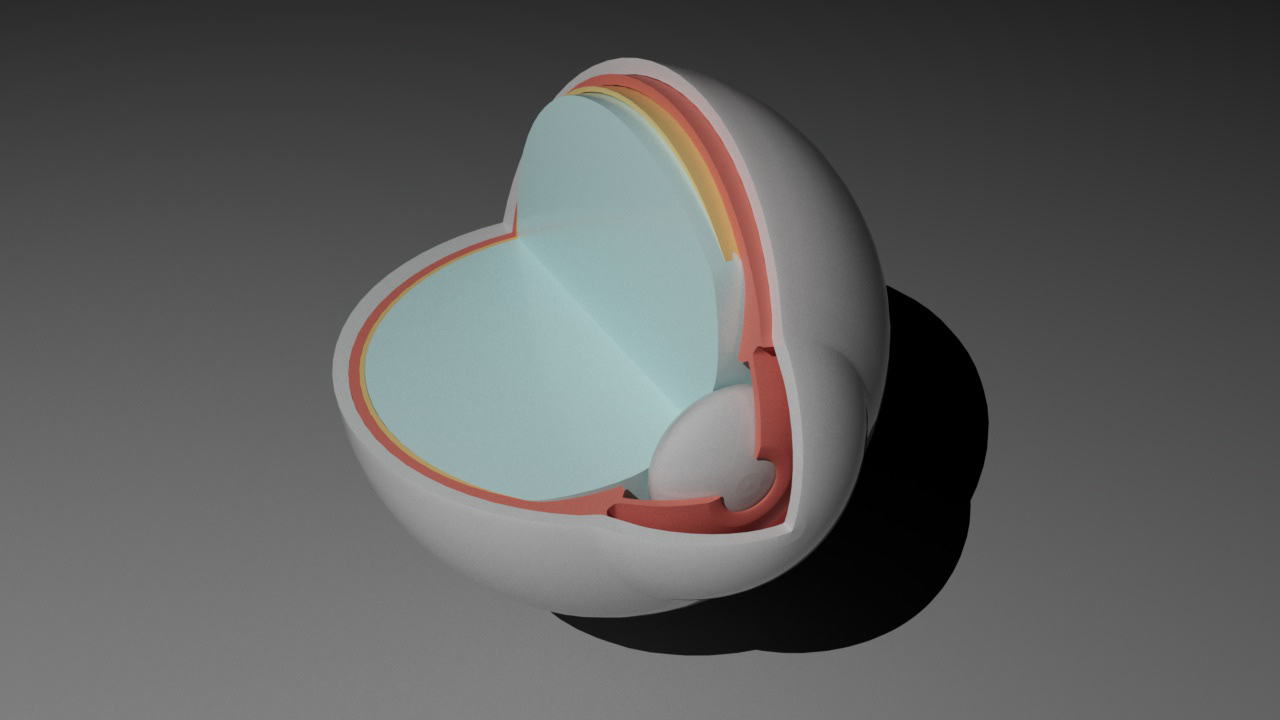

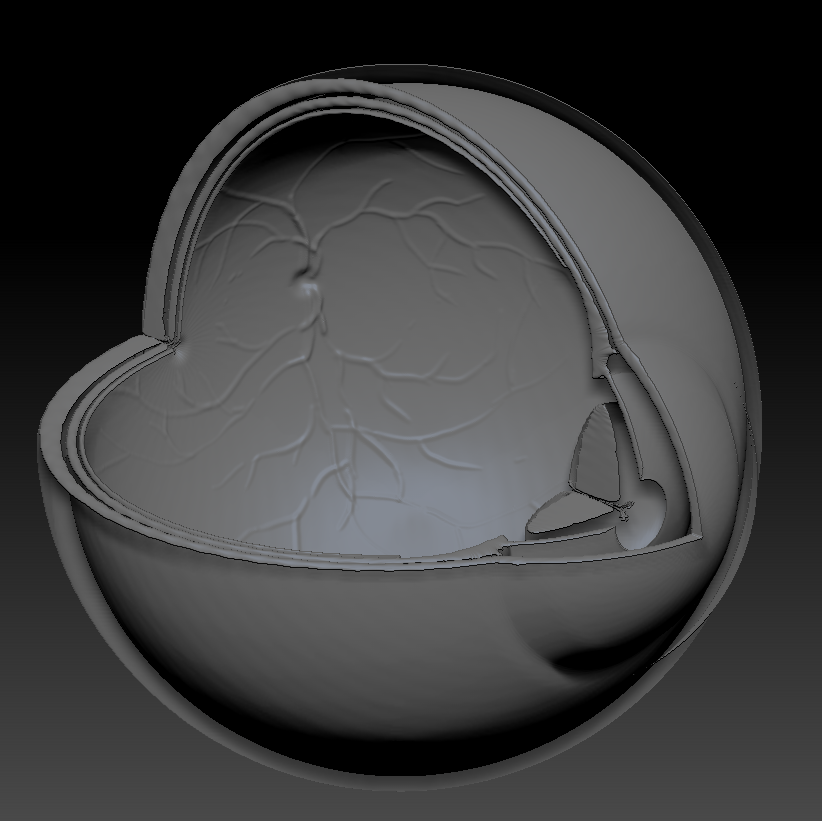

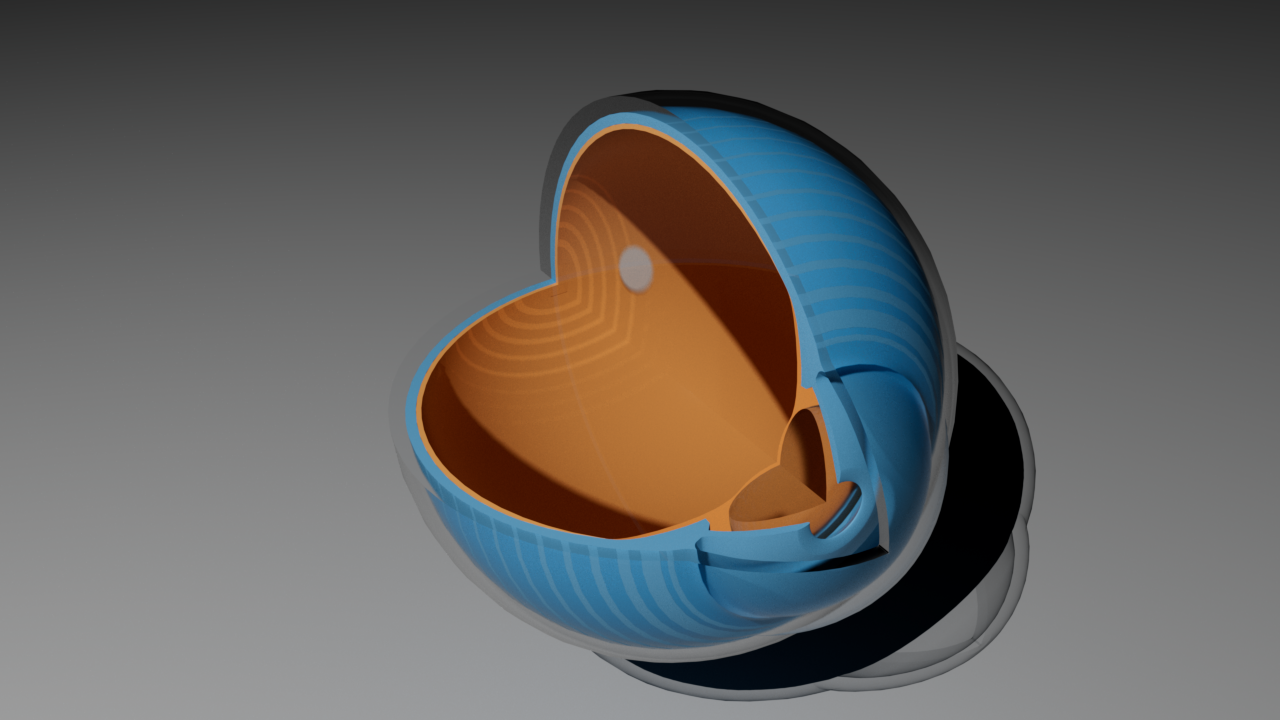

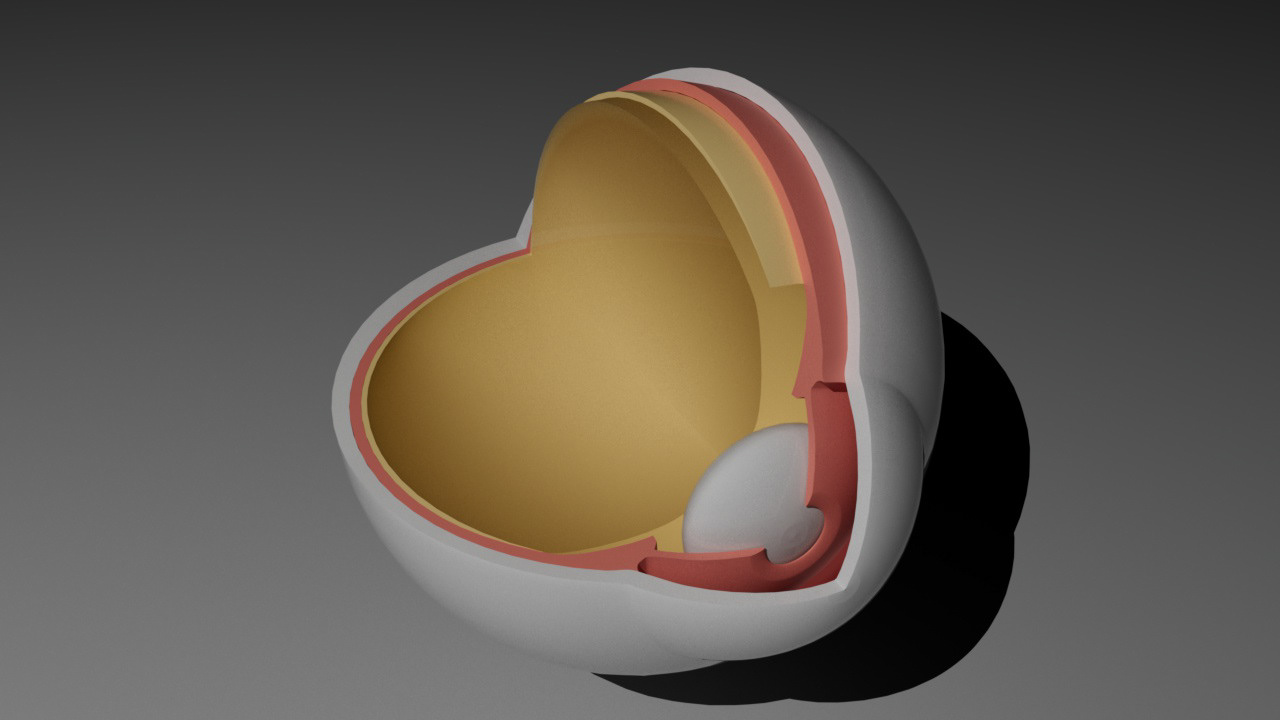

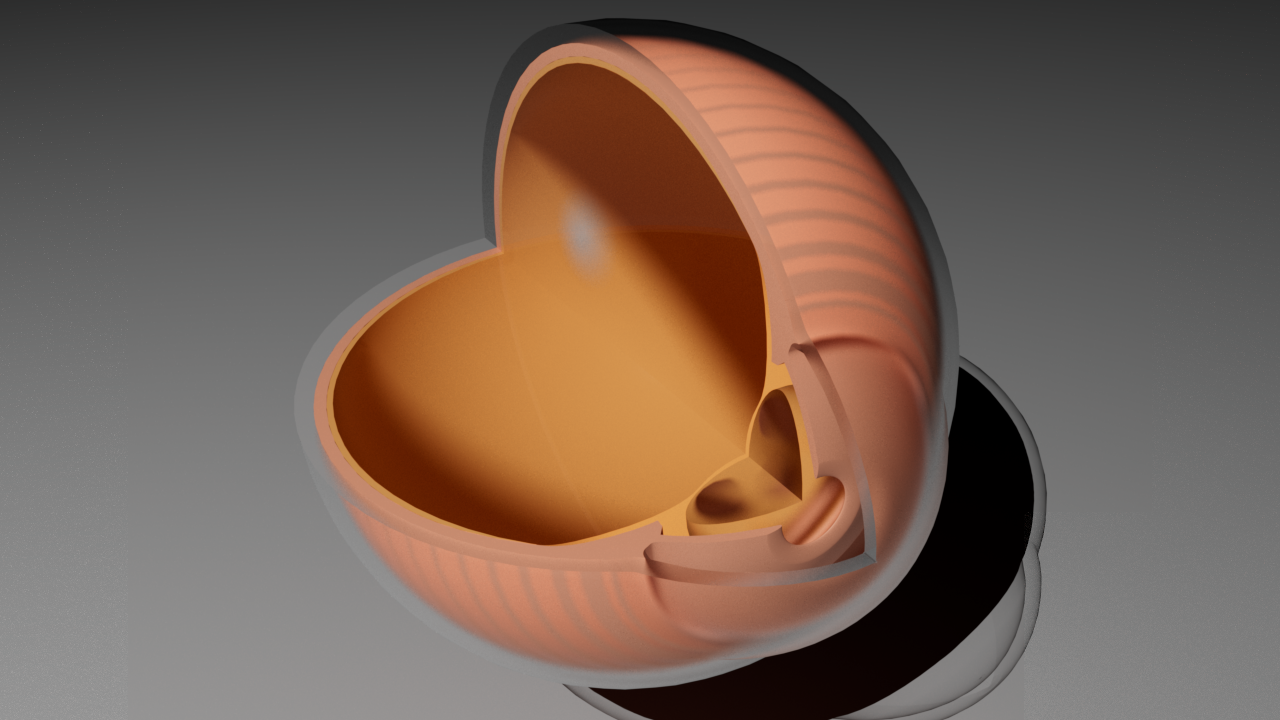

3D Maquette:
